| 브랜드 이름: | FIREPOWER |
| 모델 번호: | HG4930C |
| 모크: | 1 |
| 가격: | 6500$ |
| 지불 조건: | L/C, D/P, T/T, Western Union |
| 공급 능력: | 견본을 위한 1주 |

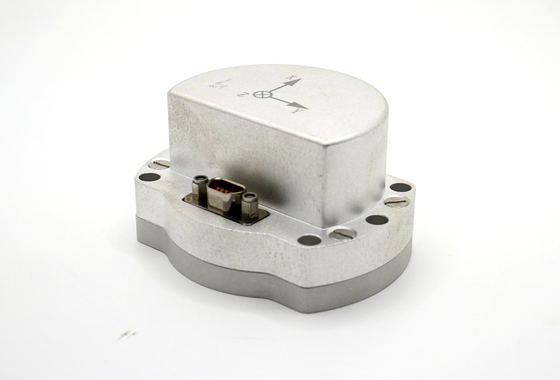

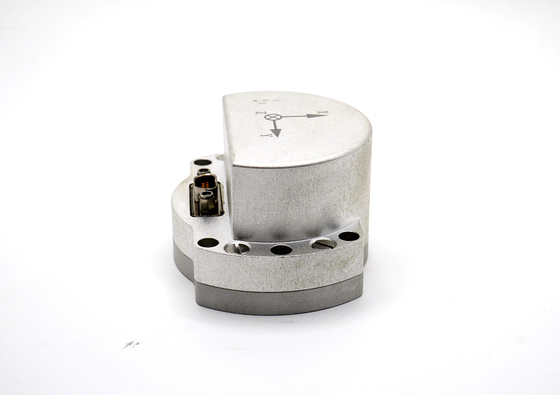

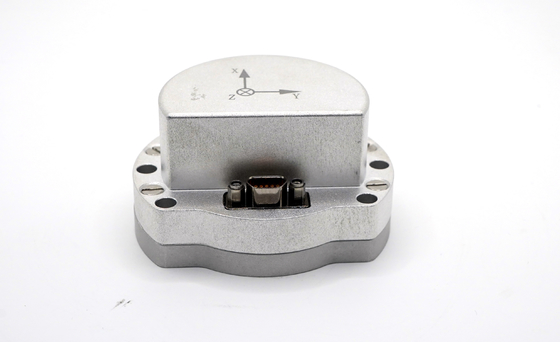

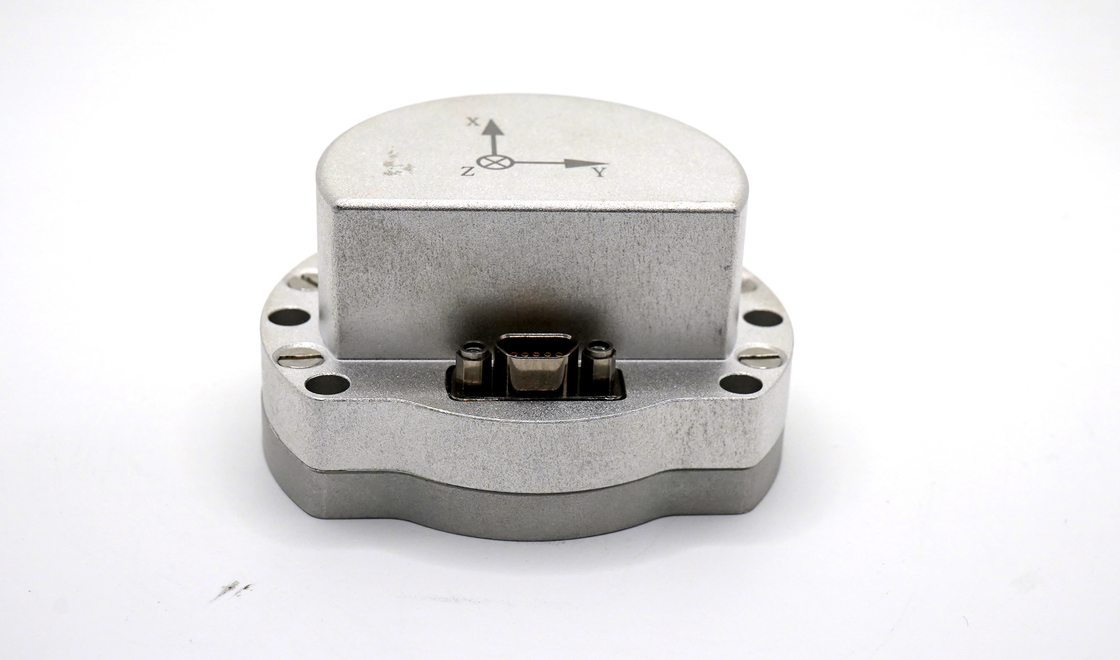

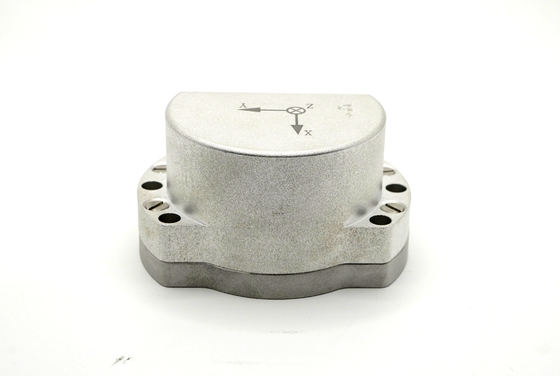

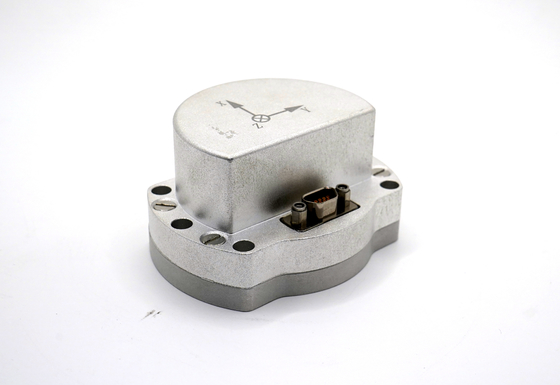

The Honeywell HG4930 is a tactical grade MEMS Inertial Measurement Unit replacement designed for high-performance applications. This compact and rugged navigation sensor is engineered for demanding environments across aerospace, defense, UAVs, robotics, marine, and industrial automation sectors.
| Parameter | Unit | HG4930C |
|---|---|---|
| Measuring range (customizable) | °/s | ±200 |
| Zero-bias stability (@ Allan variance) | °/h | 0.2 |
| Zero-bias stability (10 s smoothing, 1σ, room temperature) | °/h | 0.5 |
| Zero-bias error over full temperature range | °/h | 2.5 |
| Random walk | °/√h | 0.02 |
| Zero-bias repeatability | °/h | 1 |
| Zero bias acceleration sensitivity | °/h/g | 1 |
| Resolution | °/h | 2 |
| Scale factor nonlinearity | ppm | 100 |
| Scale factor repeatability | ppm | 100 |
| Cross coupling | % | 0.2 |
| Bandwidth | Hz | 100 |
| Parameter | Unit | HG4930C |
|---|---|---|
| Measuring range (customizable) | g | ±30 |
| Zero-bias stability (Allan Variance @ 25 ℃) | ug | 30 |
| Zero-bias stability (1s smoothing) | ug | 700 |
| Zero-bias error over full temperature range | mg | 1.5 |
| Random walk | m/s/√h | 0.01 |
| Zero-bias repeatability | mg | 2 |
| Scale factor repeatability | ppm | 200 |
| Scale factor nonlinearity | ppm | 200 |
| Cross coupling | % | 0.2 |
| Bandwidth | Hz | 100 |
