| 브랜드 이름: | FIREPOWER |
| 모델 번호: | MFOG-40 |
| 모크: | 1 |
| 가격: | 500$ |
| 지불 조건: | 신용장, 티/티 |
| 공급 능력: | 500/월 |

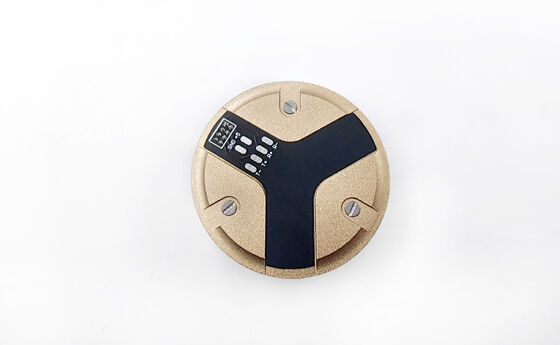

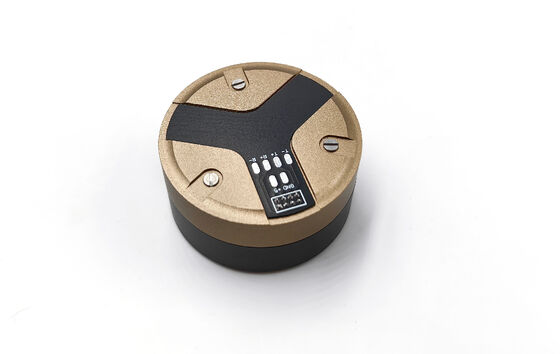

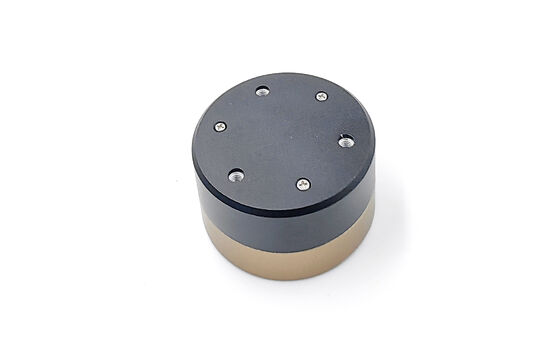

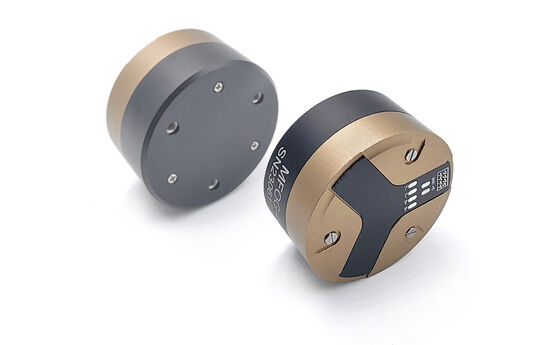

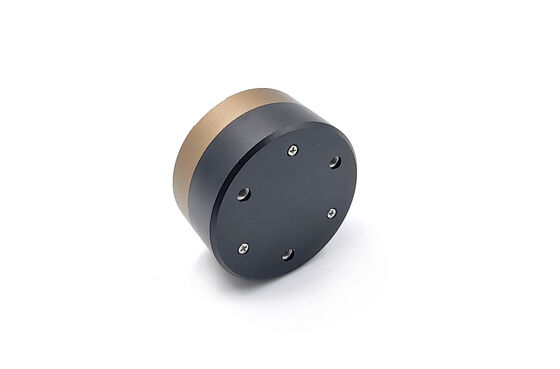

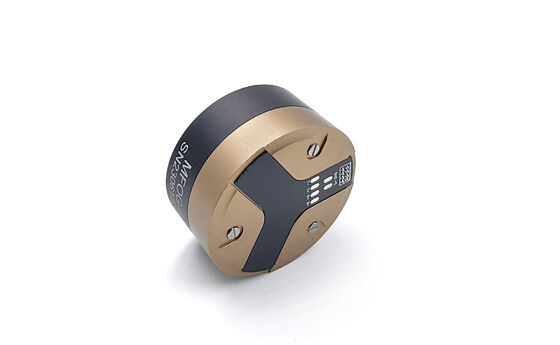

The MFOG-1703 micro-nano fiber optic gyroscope is a high-precision angular rate sensor that integrates optical, mechanical, and electronic technologies. Based on the Sagnac effect, this product incorporates multiple micro-nano fiber optic devices and measures angular rate by detecting, processing, and feedback-controlling the phase difference generated by two counter-propagating light beams.
Featuring a simple structure with no moving or wearing parts, the MFOG-1703 offers fast start-up, small size, light weight, and high reliability. This tactical grade gyroscope is specifically designed for UAV drone and robot stabilization applications, providing precise attitude measurement and control for various carriers.
| Parameter | Specification |
|---|---|
| Range (°/s) | ±150 |
| Scale Factor (mV/°/s) | 12±1.2 |
| Zero-bias Stability (10s, 1σ, °/h) | ≤1 |
| Zero-bias Repeatability (1σ, °/h) | ≤1 |
| Angular Random Walk (°/h1/2) | ≤0.02 |
| Zero-bias Temperature Sensitivity (μV/°C) | ≤1 |
| Scale Factor Temperature Sensitivity (ppm/°C) | ≤300 |
| 3dB Bandwidth (Hz) | ≥450 |
| Impact (g) | 1200, 1ms, half sine |
| Power Supply (V) | 5 ± 0.25 |
| Power Consumption (W) | ≤1 |
| Dimensions (mm) | φ40 × 20 |
