| 브랜드 이름: | Firepower |
| 모델 번호: | MFOG-24 |
| 모크: | 1 |
| 가격: | 700$ |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온 |
| 공급 능력: | 500/월 |

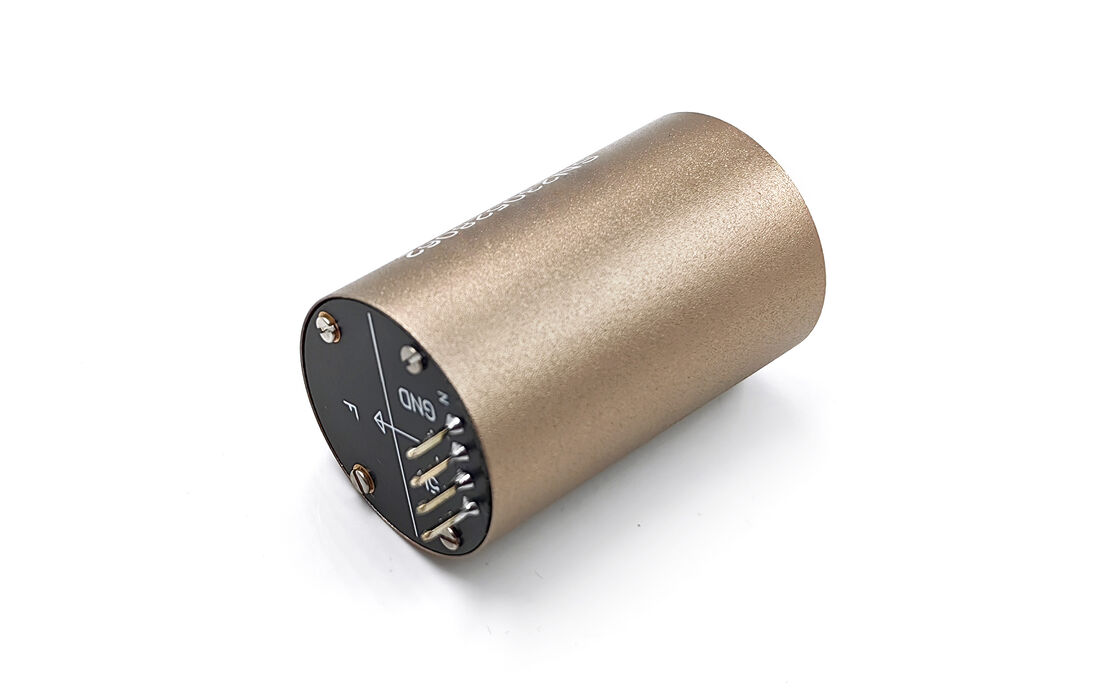

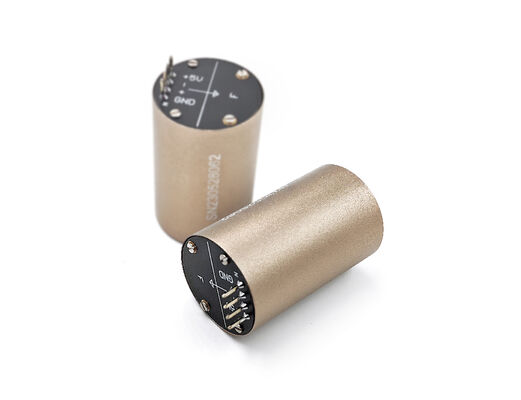

The MFOG-24 Micro-Nano Fiber Optic Gyroscope is a high-precision angular rate sensor integrating optics, mechanics, and electronics. Leveraging the Sagnac effect, it detects angular rotation by processing the phase difference of counter-propagating light beams. Compact, lightweight, and with no moving parts, the MFOG-24 ensures fast startup and long-term reliability.
| Parameter | Unit | MFOG-24 | MFOG-24-AN | Fizoptika VG191AD |
|---|---|---|---|---|
| Measurement Range | °/s | ±500 | ±300 | 300 |
| Scale Factor | LSB/°/s or mV/°/s | 3600 LSB/°/s | 7 mV/°/s | 0.02 % RMS |
| Scale Factor Nonlinearity | ppm | 300 | ≤1000 | N/A |
| Zero-Bias Stability (10s, 1σ) | °/h | ≤1.5 | ≤2 | 1 (Allan variance min) |
| Zero-Bias Repeatability (1σ) | °/h | ≤1.5 | ≤2 | N/A |
| Angular Random Walk (ARW) | °/√h | ≤0.03 | ≤0.04 | 0.012 |
| Bandwidth (3dB) | Hz / kHz | ≥300 Hz | ≥450 Hz | 0.6 kHz |
| Magnetic Response | °/h/Gauss | N/A | N/A | 3 / 0.05 typical |
| Initialization | s | Fast | Fast | 0.03 |
| Power Supply | V | 5 ±0.15 | 5 ±0.15 | +5V |
| Power Consumption | W | ≤1.5 | ≤0.7 | 0.5 |
| Data Rate | kHz | N/A | N/A | 8 (24-bit) |
| Baud Rate | kBd | N/A | N/A | 921.6, RS422 asynchronous |
| Operating Temperature | °C | -40~+65 | -40~+65 | -40…+70 |
| Endurance / Storage Temperature | °C | -55~+85 | -55~+85 | -55…+85 (>2h, non-operating) |
| Random Vibration | g | 20, 20–2000 Hz | 20 g | 18 g, 20–2000 Hz RMS |
| Shocks | g | N/A | N/A | 750 g, 1 ms half-sine |
| Dimensions | mm | φ24 × 39 | φ24 × 39 | φ24 × 48 |
| Weight | g | ≤30 | ≤30 | 30 / 45 |
| Housing | — | Structural + Optical + Electronics | Structural + Optical + Electronics | Al alloy / μ-metal, IP67 |
| MTBF / Lifetime | yr | N/A | N/A | 15 (humidity conditions applied) |
| Moving Parts | — | None | None | None |
| Start-up | — | Fast | Fast | 0.03 s |
| Applications | — | UAV, Robotics, Attitude Control, Precision Measurement | UAV, Robotics, Attitude Control, Precision Measurement | UAV, Robotics, Attitude Control, Precision Measurement |
| Replacement | — | Fizoptika VG191AD compatible | Fizoptika VG191AD compatible | N/A |
Navigation for drones, autonomous vehicles, robotics, and industrial motion control. Serves as a drop-in replacement for Fizoptika VG191AD.
Electrical interface
|
Number |
Definition |
|
1 |
5V |
|
2 |
Analog output Low |
|
3 |
Analog Output High |
|
4 |
GND |
