| 브랜드 이름: | Firepower |
| 모델 번호: | MFOG-40 |
| 모크: | 1 |
| 가격: | 700$ |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온 |
| 공급 능력: | 500/월 |
| Parameter | MFOG-40 | Fizoptika VG1703 |
|---|---|---|
| Measurement Range | ±300°/s | ±130°/s / ±150°/s / ±300°/s |
| Zero Bias Stability | ≤0.8°/h | ≤1°/h |
| Angular Random Walk | ≤0.02°/√h | 0.008-0.02°/√h |
| Bias Repeatability | ≤0.8°/h | ≤1°/h |
| Scale Factor Nonlinearity | ≤500 ppm | ≤500 ppm |
| Bandwidth | ≥300 Hz | up to 1 kHz |
| Power Consumption | ≤1.5W | 0.25-0.5W |
| Size | φ40×20 mm | φ40×12-19 mm |
| Weight | ≤40g | 18-35g |
| Operating Temp | -40 to +70°C | -40 to +70°C |
| Vibration | 20g | up to 30g |

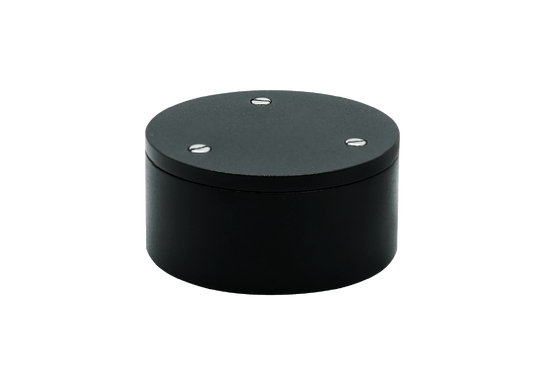

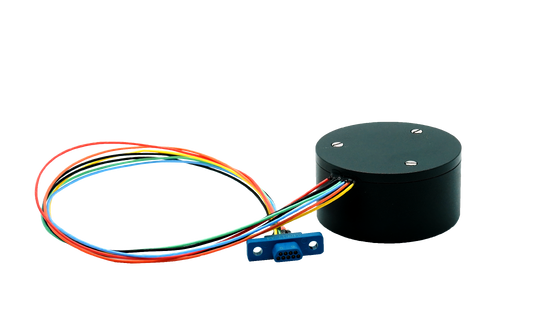

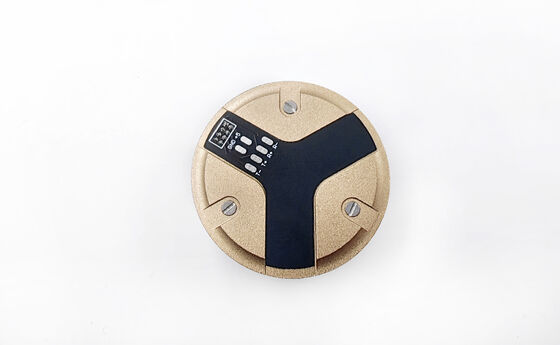

The MFOG-40 is a compact fiber optic gyroscope designed for precision navigation and control. Based on the Sagnac effect, it accurately detects angular velocity by measuring phase differences in counter-propagating light beams.
Its robust design offers high bias stability and consistent performance across harsh environments. Ideal for autonomous systems, UAVs, marine navigation, and industrial automation, the MFOG-40 can be used as a cost-effective alternative to the VG1703 gyroscope.
| Parameter | Specification |
|---|---|
| Measurement Range | ±300°/s |
| Scale Factor | 3600 LSB/(°/s) |
| Scale Factor Nonlinearity | ≤500 ppm |
| Zero Bias Stability (10s, 1σ) | ≤0.8°/h |
| Zero Bias Repeatability | ≤0.8°/h |
| Angular Random Walk | ≤0.02°/√h |
| Bias Stability (Full Temp) | ≤1.5°/h |
| Bandwidth | ≥300 Hz |
| Power Supply | 5V ±0.15V |
| Power Consumption | ≤1.5W |
