| 브랜드 이름: | Firepower |
| 모델 번호: | MGZ318HC-A1 |
| 모크: | 1 |
| 가격: | 협상 가능 |
| 지불 조건: | 티/티 |
| 공급 능력: | 500/월 |

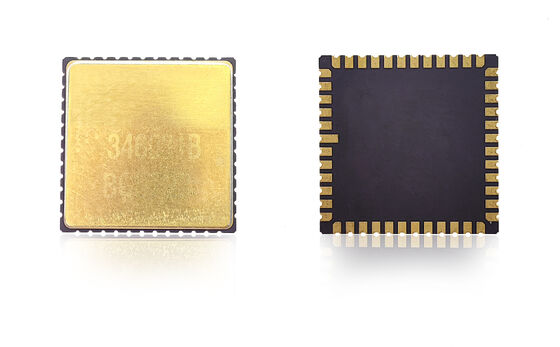

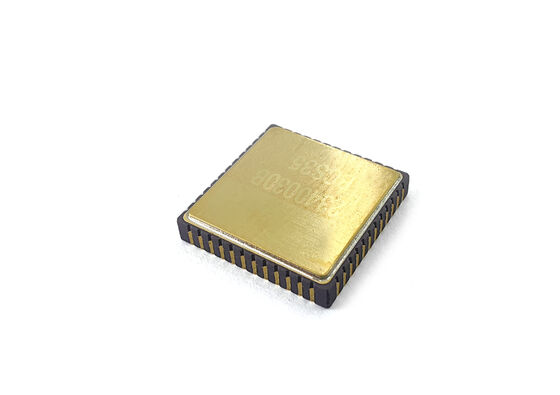

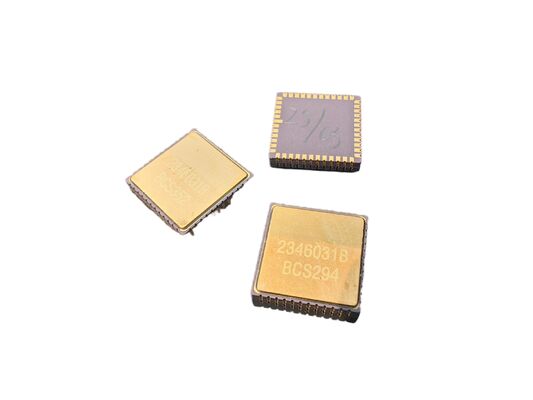

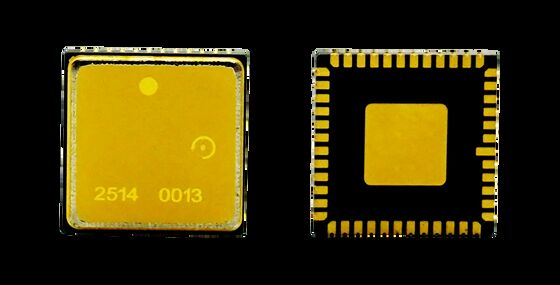

Our MEMS gyroscope chip provides accurate and stable motion sensing for next-generation navigation and control systems. With low noise and high reliability, it supports applications in UAVs, robotics, and autonomous vehicles. OEM customization ensures compatibility with your specific system requirements.
| Performance | Unit | MGZ318HC-A1 |
|---|---|---|
| Range | deg/s | 400 |
| Band Width @3DB (customized) | Hz | 200 |
| Output accuracy (digital SPI) | bits | 24 |
| Output rate (ODR) (customized) | Hz | 12K |
| Delay (customized) | ms | <1.5 |
| Bias stability | deg/hr(1σ) | <0.1 |
| Bias stability (1σ 10s) | deg/hr(1σ) | <1 |
| Bias error over temperature (1σ) | deg/hr(1σ) | <10 |
| Scale factor at 25°C | lsb/deg/s | 16000 |
| Scale factor repeatability (1σ) | ppm(1σ) | <20ppm |
| Scale factor vs temperature (1σ) | ppm(1σ) | <150ppm |
| Scale factor non-linearity (1σ) | ppm | <150ppm |
| Angular random walk (ARW) | °/√h | <0.05 |
| Noise (Peak to Peak) | deg/s | <0.35 |
| G Value sensitivity | °/hr/g | <1 |
| Power-on time (valid data) | s | 750m |
| Sensor Resonant Frequency | hz | 10.5k-13.5K |
| Impact (power on) | 500g, 1ms |
| Impact resistance (power off) | 10000g, 10ms |
| Vibration (power on) | 18g rms (20Hz to 2kHz) |
| Working temperature | -40°C to +85°C |
| Store temperature | -55°C to +125°C |
| Supply voltage | 5±0.25V |
| Current consumption | 45mA |
