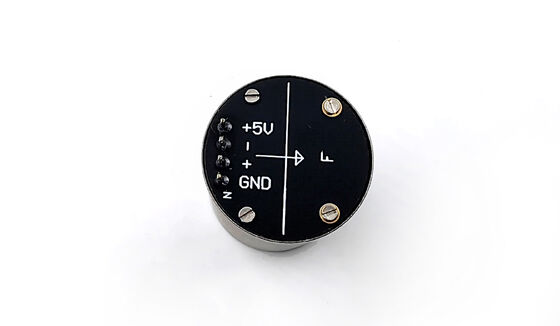

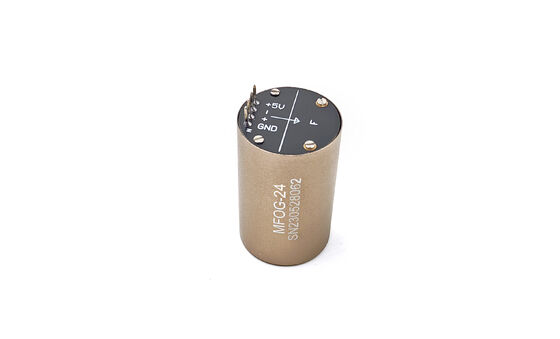

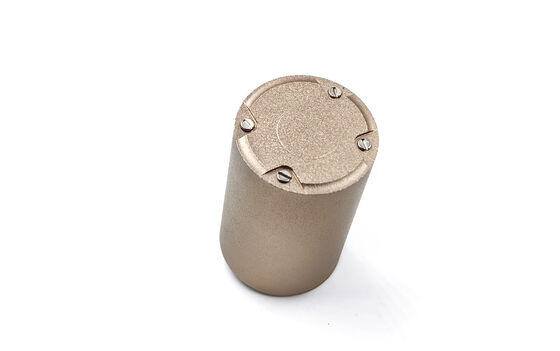

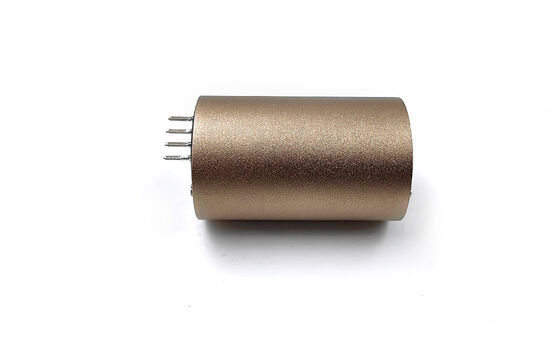

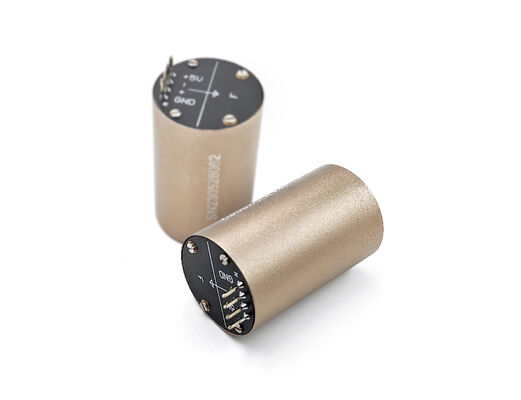

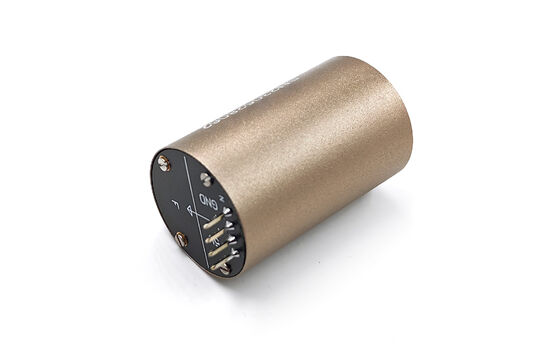

The MFOG-24 Fiber Optic Gyroscope Sensor is engineered for industrial and defense-grade navigation systems. This high-performance sensor provides stable angular velocity measurements with exceptional bias stability and excellent environmental tolerance.
Featuring a robust design and compact structure, this gyroscope is ideally suited for autonomous vehicles, radar stabilization systems, and precision navigation equipment requiring reliable performance in demanding environments.
| Parameter | MFOG-24 | MFOG-24-AN |
|---|---|---|
| Range (°/s) | ±500 | ±300 |
| Scale Factor | 3600 (LSB/°/s) | 7 mV/°/s |
| Scale Factor Nonlinearity (ppm) | 300 | ≤1000 |
| Zero-Bias Stability (10s, 1σ, °/h) | ≤1.5 | ≤2 |
| Zero-Bias Repeatability (1σ, °/h) | ≤1.5 | ≤2 |
| Angular Random Walk (°/h1/2) | ≤0.03 | ≤0.04 |
| Zero Bias (°/s) | ≤0.02 | ≤0.05 |
| 3dB Bandwidth (Hz) | ≥300 | ≥450 |
| Power Supply (V) | 5±0.15 | 5±0.15 |
| Power Consumption (W) | ≤1.5 | ≤0.7 |
| Dimensions (mm) | φ24*39 | φ24*39 |
