| 브랜드 이름: | Firepower |
| 모델 번호: | MFOG-24 |
| 모크: | 1 |
| 가격: | 700$ |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온 |
| 공급 능력: | 500/월 |

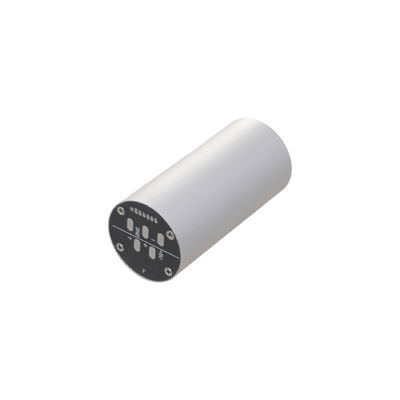

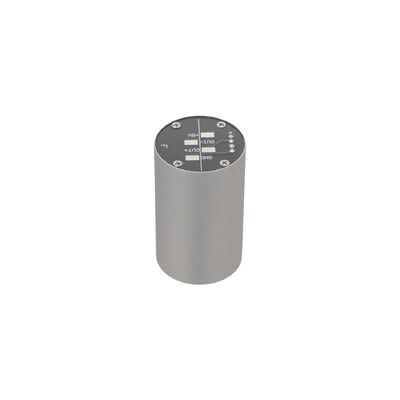

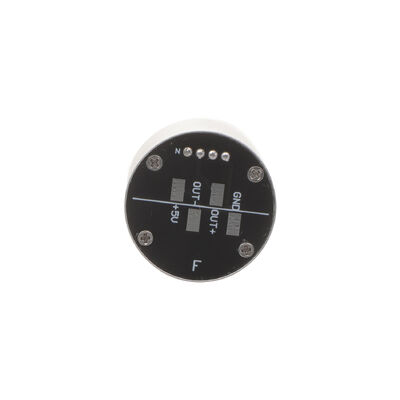

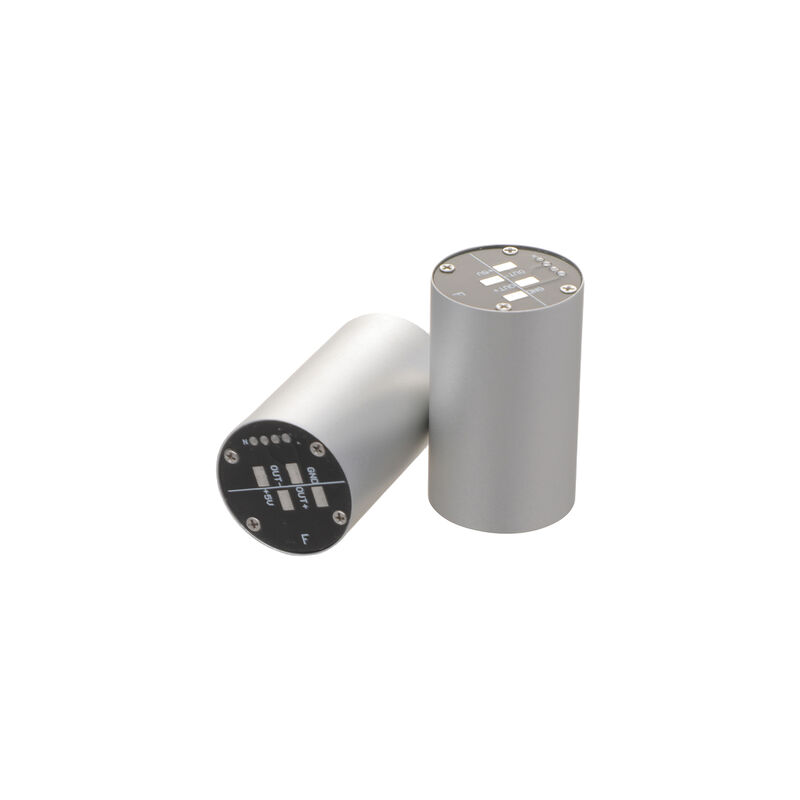

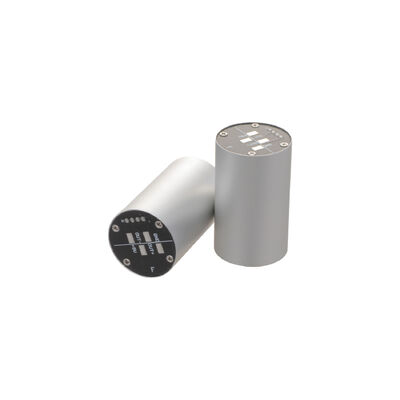

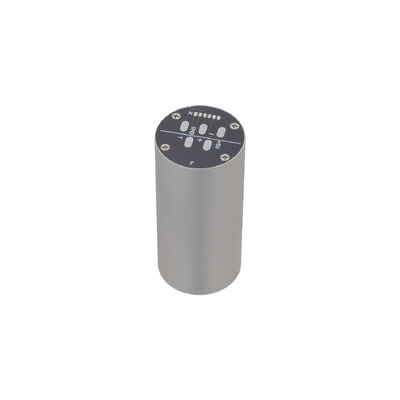

The MFOG-24 micro-nano fiber optic gyroscope is engineered for attitude measurement and flight stabilization in unmanned aerial vehicles. Utilizing the Sagnac Effect, this gyroscope delivers precise rotation sensing with high bandwidth and low noise performance.
These advanced features make the MFOG-24 an optimal solution for compact inertial navigation modules in UAVs and drone applications.
| Serial No. | Parameter | MFOG-24 | MFOG-24-AN |
|---|---|---|---|
| 1 | Range (°/s) | ±500 | ±300 |
| 2 | Scale Factor | 3600 (LSB/o/s) | 7mv/o/s |
| 3 | Scale Factor Nonlinearity (ppm) | 300 | ≤1000 |
| 4 | Zero-Bias Stability (10s, 1σ, °/h) | ≤1.5 | ≤2 |
| 5 | Zero-Bias Repeatability (1σ, °/h) | ≤1.5 | ≤2 |
| 6 | Angular Random Walk (°/h 1/2) | ≤0.03 | ≤0.04 |
| 7 | Zero Bias (°/s) | ≤0.02 | ≤0.05 |
| 8 | 3dB Bandwidth (Hz) | ≥300 | ≥450 |
| 9 | Power Supply (V) | 5+0.15 | 5+0.15 |
| 10 | Power Consumption (W) | ≤1.5 | ≤0.7 |
| 11 | Dimension (mm) | φ24 * 39 | |
