| 브랜드 이름: | Firepower |
| 모델 번호: | MFOG-24 |
| 모크: | 1 |
| 가격: | 700$ |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온 |
| 공급 능력: | 500/월 |

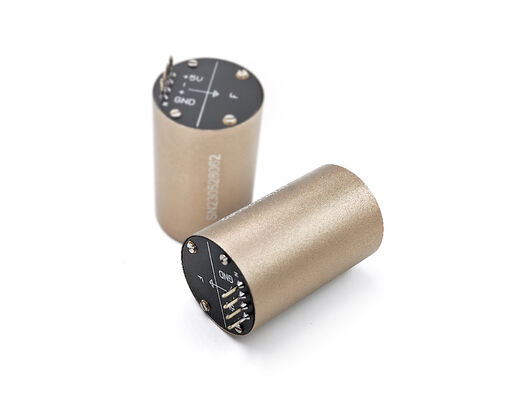

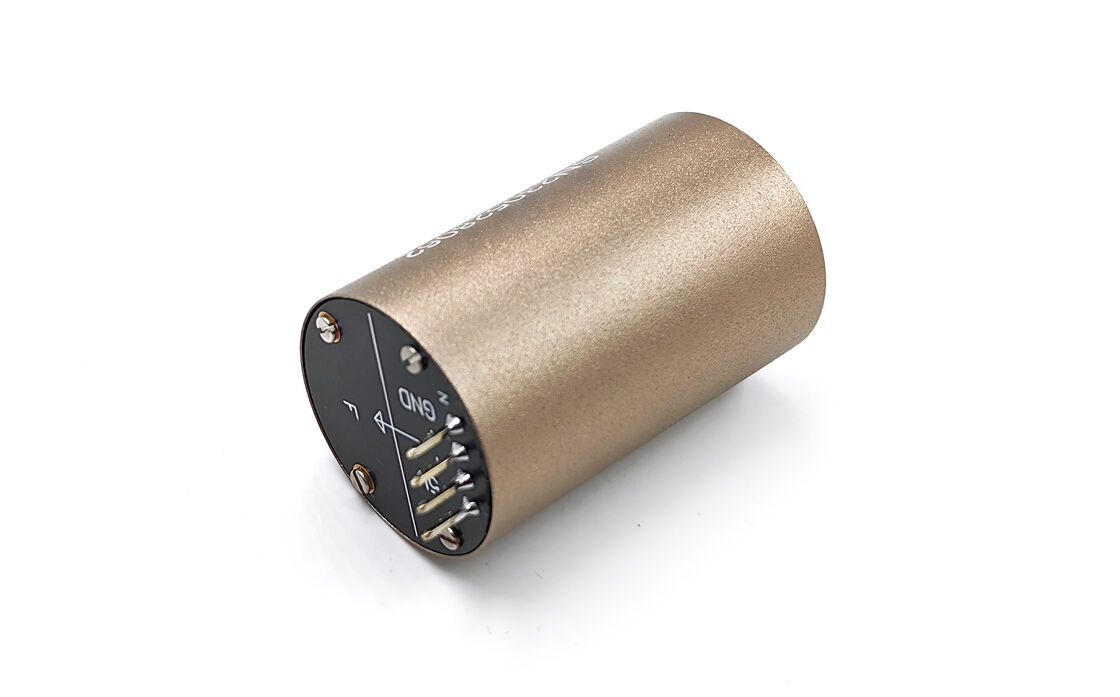

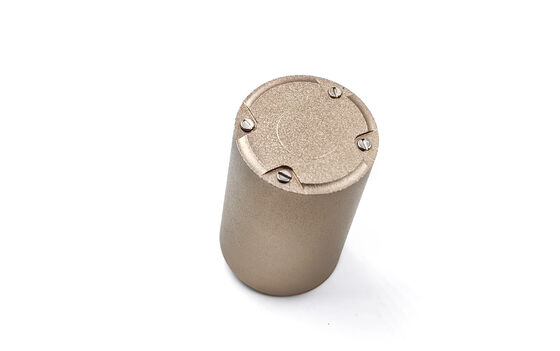

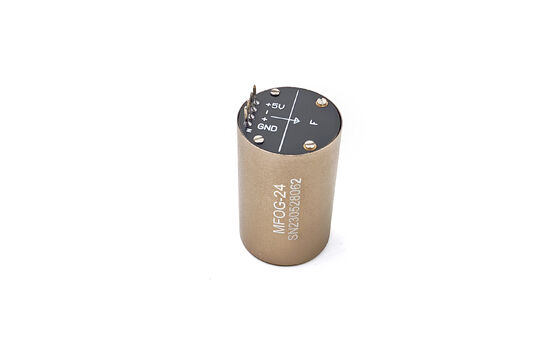

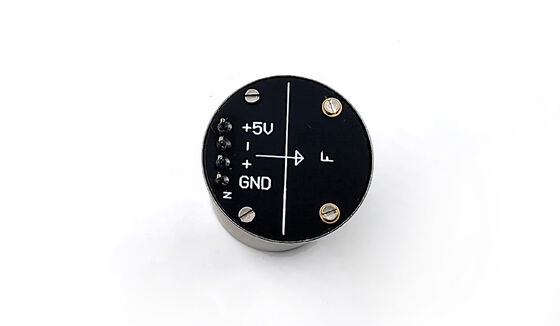

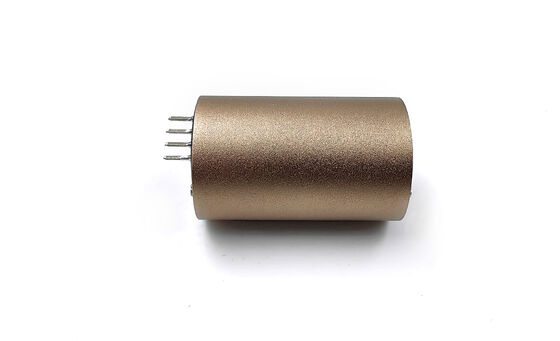

High-precision angular rate sensor designed for modern inertial navigation and motion control systems. Based on the Sagnac Effect, this device measures rotation by detecting phase differences between counter-propagating light beams in a fiber coil.
With compact dimensions of Φ 24 * 39 mm and weight of ≤ 30 g, this gyroscope is ideal for:
Serves as a compact alternative to Fizoptika VG191AD, offering high reliability with no moving parts and low power consumption for extended operation.
| Parameter | MFOG-24 | MFOG-24-AN |
|---|---|---|
| Range (°/s) | ±500 | ±300 |
| Scale Factor | 3600 (LSB/°/s) | 7 mV/°/s |
| Scale Factor Nonlinearity (ppm) | 300 | ≤1000 |
| Zero-Bias Stability (10s, 1σ, °/h) | ≤1.5 | ≤2 |
| Zero-Bias Repeatability (1σ, °/h) | ≤1.5 | ≤2 |
| Angular Random Walk (°/h¹/²) | ≤0.03 | ≤0.04 |
| Zero Bias (°/s) | ≤0.02 | ≤0.05 |
| 3dB Bandwidth (Hz) | ≥300 | ≥450 |
| Power Supply (V) | 5±0.15 | 5±0.15 |
| Power Consumption (W) | ≤1.5 | ≤0.7 |
| Dimension (mm) | φ24*39 | φ24*39 |
