| 브랜드 이름: | Firepower |

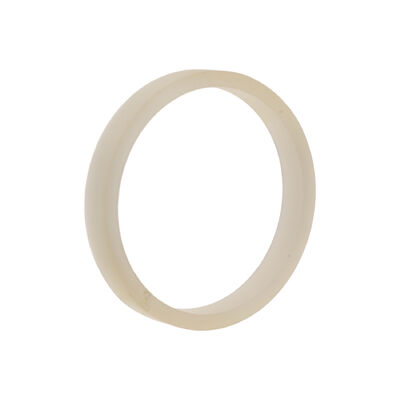

| 모델 번호: | F50 독립형 광섬유 코일 |
| 모크: | 1 |
| 가격: | 700$ |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온 |
| 공급 능력: | 500/월 |
This model serves as a baseline design for 50mm FOGs, featuring a standard 36-layer configuration. It balances cost and performance with a 135µm fiber coating. For specialized applications, the geometric dimensions, fiber length, and specific performance indexes can be tailored. The standard version guarantees full-temperature crosstalk suppression of -20dB and high consistency due to mass-production capabilities.
Mainly used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.
| Feature | Unit | Index |
|---|---|---|
| Length | M | 260±5 |
| Optical Fiber | / | 80/135μm Optical Fiber |
| Layers | layer | 36 |
| Crosstalk | dB | ≤-22 |
| Full Temperature Crosstalk | dB | ≤-20 |
| Insertion Loss | dB | ≤0.2 |
| Constant Temperature Bias Stability (10s Smoothing) | °/h | ≤0.3 |
| Full Temperature Zero Bias Peak-to-Peak (10s Smoothing) | °/h | ≤1.5 |
| Temperature Range | °C | -45-80 |
| Temperature Rate of Change | °C/min | 1 |
| Geometric Dimensions | / | 29.0mm(ID) × 39.0mm(OD) × 9.2mm(H) |
The geometric dimensions, length, and performance of the optic fiber coil can be designed according to customer's application requirements.
