| 브랜드 이름: | Firepower |
| 모델 번호: | F50 독립형 광섬유 코일 |
| 모크: | 1 |
| 가격: | 700$ |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온 |
| 공급 능력: | 500/월 |

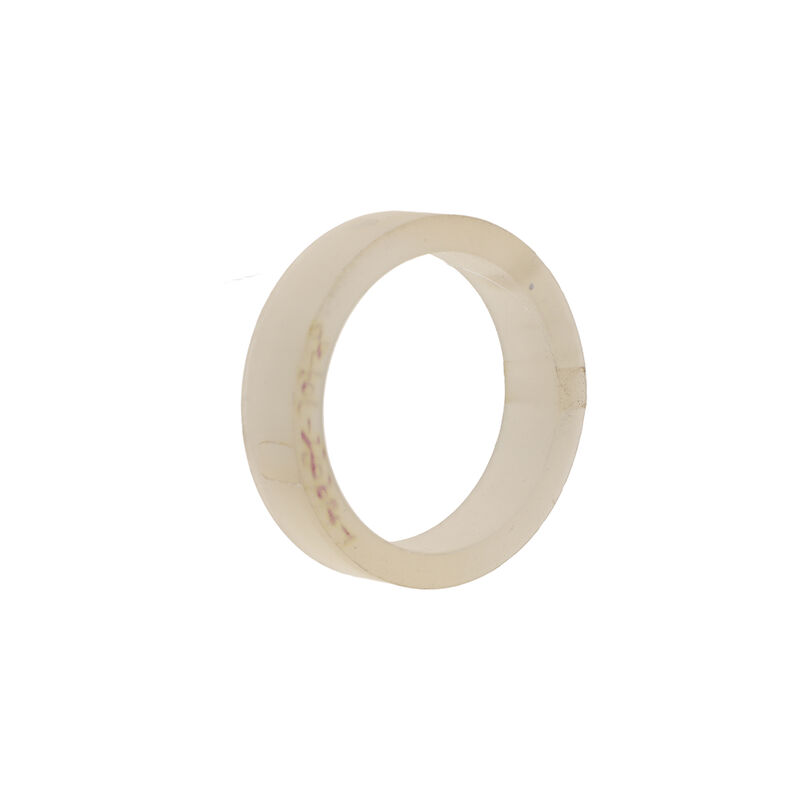

Our company specializes in the professional design and manufacturing of optical fiber coils to meet customer and market application requirements. The φ50 low-precision fiber optic coil is engineered to satisfy the assembly, performance, and various environmental application needs of φ50 fiber optic gyroscopes.
Primarily used in closed-loop fiber optic gyroscopes with a diameter of approximately 50mm.
This optical fiber coil model utilizes a multi-pole symmetric winding method with 135μm thin diameter optical fibers and UV-cured adhesive. The ring demonstrates excellent temperature and vibration performance, and supports mass production with consistent product quality.
| Feature | Unit | Index |
|---|---|---|
| Length | M | 260±5 |
| Optical Fiber | / | 80/135μm Optical Fiber |
| Layers | layer | 36 |
| Crosstalk | dB | ≤-22 |
| Full Temperature Crosstalk | dB | ≤-20 |
| Insertion Loss | dB | ≤0.2 |
| Constant Temperature Bias Stability (10s Smoothing) | °/h | ≤0.3 |
| Full Temperature Zero Bias Peak-to-Peak (10s Smoothing) | °/h | ≤1.5 |
| Temperature Range | °C | -45-80 |
| Temperature Rate of Change | °C/min | 1 |
| Geometric Dimensions | / | 29.0mm(ID) × 39.0mm(OD) × 9.2mm(H) |
The geometric dimensions, length, and performance specifications of the optical fiber coil can be customized according to specific customer application requirements.
