| 브랜드 이름: | Firepower |
| 모델 번호: | MFOG-40 |
| 모크: | 1 |
| 가격: | 700$ |
| 지불 조건: | L/C,D/A,D/P,T/T,웨스턴 유니온 |
| 공급 능력: | 500/월 |

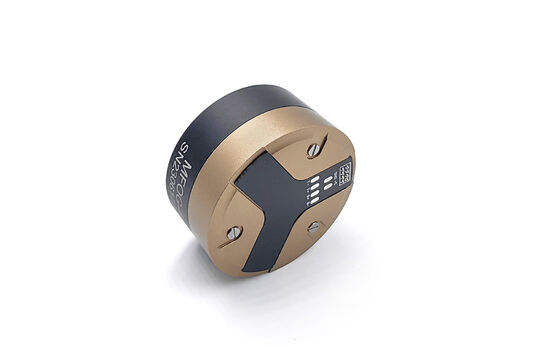

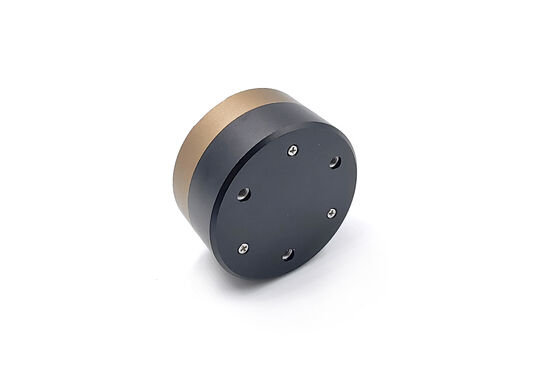

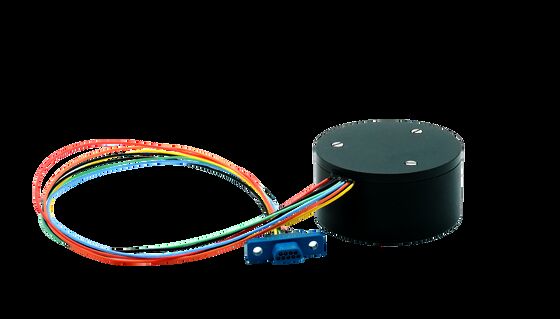

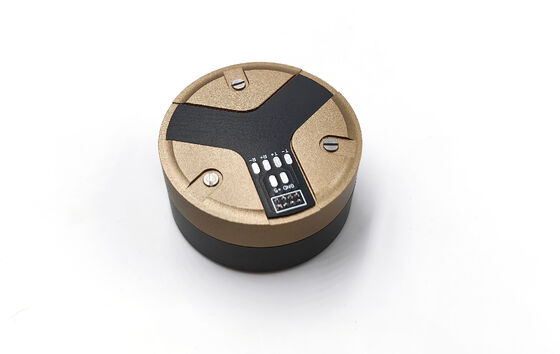

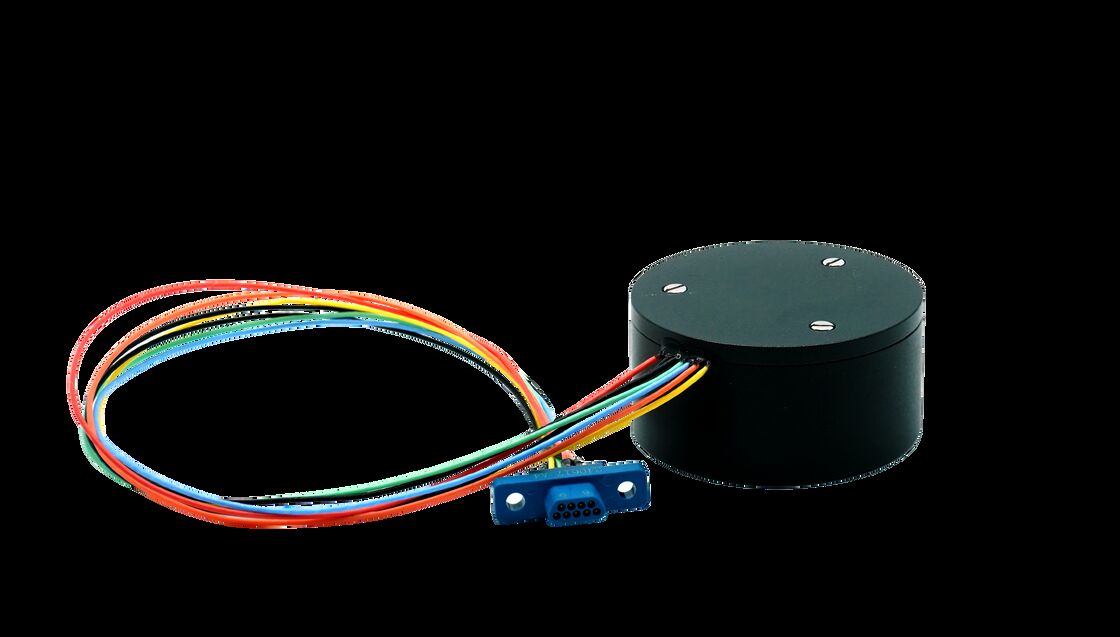

This micro-nano fiber optic gyroscope integrates optical path assemblies, signal control circuits, and structural components to deliver exceptional reliability. With ≥300Hz bandwidth and low power consumption (≤1.5W), it is ideal for marine, aerospace, and land-based applications.
| Parameter | Specification |
|---|---|
| Range (°/s) | ±300 |
| Scale Factor (LSB/°/s) | 3600 |
| Scale Factor Nonlinearity (ppm) | ≤500 |
| Zero-Bias Stability (10s, 1σ, °/H) | ≤0.8 |
| Zero-Bias Repeatability (1σ, °/H) | ≤0.8 |
| Angular Random Walk (°/H¹/²) | ≤0.02 |
| Zero-Bias Stability at Full Temperature (10s, 1σ, -40℃ ~ +65℃, °/H) | ≤1.5 |
| 3dB Bandwidth (Hz) | ≥300 |
| Power Supply (V) | 5+0.15 |
| Power Consumption (W) | ≤1.5 |
| Dimensions (mm) | φ40*20 |
