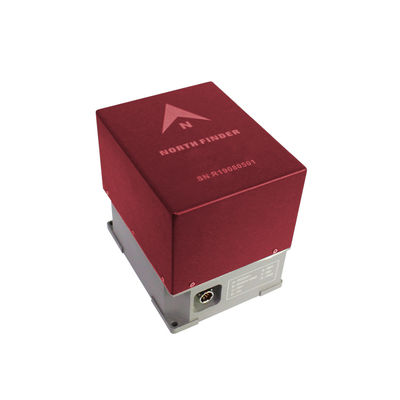

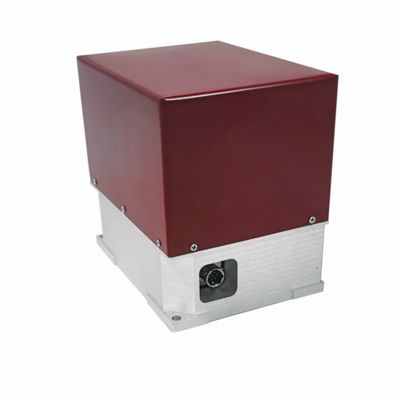

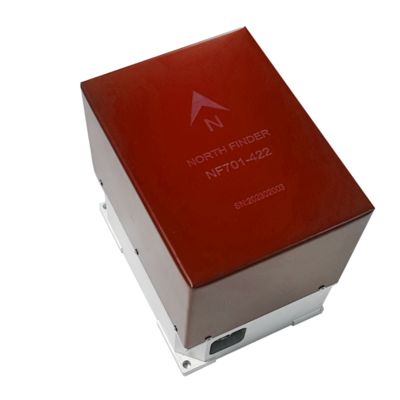

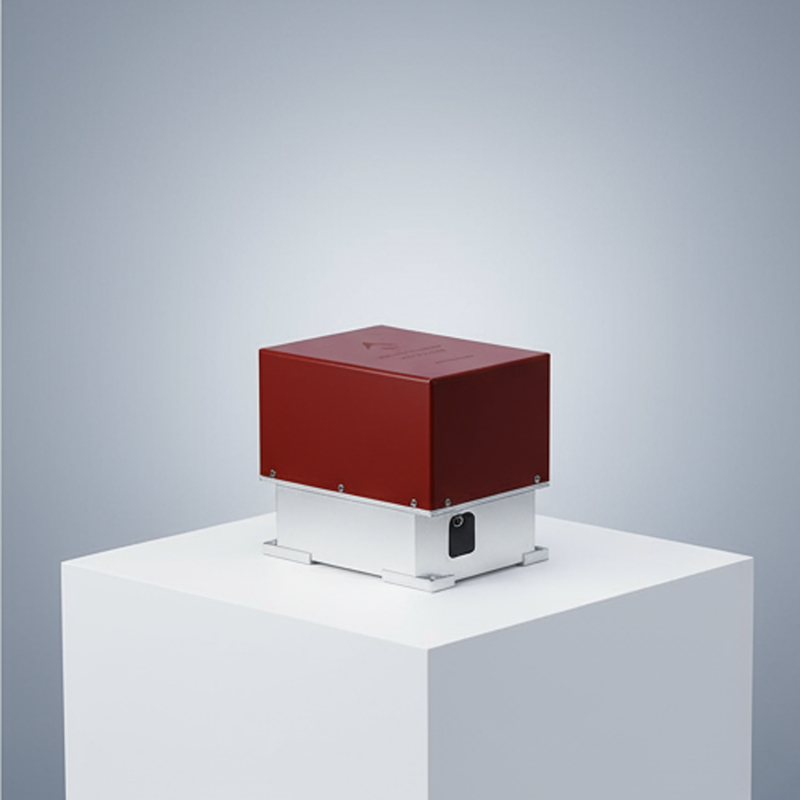

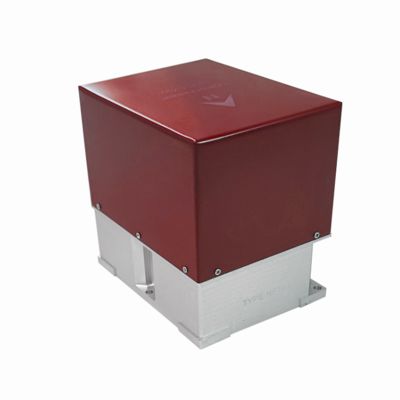

Compact FOG-Based True-North Finder for Navigation System

Name: Compact FOG-Based True-North Finder for Navigation System
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: NF702
Price: 5000 USD
Availability: InStock

브랜드 이름:	FIREPOWER
모델 번호:	NF702
모크:	1
가격:	5000$
지불 조건:	L/C, T/T, Moneygram, Western Union
공급 능력:	500/월

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

북쪽은 정확성을 추구합니다:

≤ 0.1°(NF702A); ≤ 0.05°(NF702B)

수평 정확도:

≤ 0.05 °

무게:

≤ 2 kg

전력 소비:

15 Ｗ

인터페이스:

RS232

차원:

120×90×115mm

포장 세부 사항:

스폰지 + 상자

공급 능력:

500/월

강조하다:

compact FOG true-north finder

navigation system gyro sensor

FOG-based accelerometer for navigation

제품 설명

Compact FOG-Based True-North Finder for Navigation System

The Fiber Optic Gyroscope (FOG) North Finder is a state-of-the-art navigation instrument designed for rapid and autonomous determination of true north. Utilizing advanced fiber optic gyroscope technology, it accurately measures the Earth's rotation angular velocity, resolves the rotational signals, and calculates the precise angle between the gyroscope's main axis and true north, providing reliable azimuth information for a wide range of platforms and carriers.

This electromechanical integrated system combines a fiber optic gyroscope, high-precision accelerometer, mechanical rotation control unit, and an embedded computer, ensuring fast alignment, stable performance, and accurate north-seeking capability even in GPS-denied or magnetic interference environments.

Ideal for applications in military navigation, surveying and mapping, mobile platforms, industrial positioning, and oilfield drilling orientation, the FOG north finder is the ultimate solution for precise, reliable, and autonomous azimuth determination.

1.1 Overall Dimensions

Dimension (mm): 120 × 90 × 115

1.2 Main Technical Indicators

North seeking time: ≤ 3 min
North seeking accuracy (1σ): ≤ 0.1° (NF702A); ≤ 0.05° (NF702B)
Horizontal accuracy: ≤ 0.05° (1σ)
Circumference: ≤ 0.1° (1σ)
Weight: ≤ 2 kg
Power supply: 24 ± 4V
Power consumption: 15 W (peak)
Interface: RS 232
Working mode: start automatic self-check after power on, control north seeking by the upper computer, and send north seeking results to the upper computer after north seeking is completed

1.3 Environmental Requirements

Working temperature: -40℃ ~ +65℃
Storage temperature: -45℃ ~ +85℃
Humid and hot environmental conditions: relative humidity is less than 95%
Appearance: The metal surface shall not be rusted, and the coating shall be free of blistering, peeling, etc.

1.4 Electrical Performance

Insulation resistance: the insulation resistance between the independent circuits of the gyro north finder and between the circuit and the shell shall not be less than 10 MΩ under standard atmospheric conditions

1.5 Maintainability

MTBF ≥ 1000 hours
MTTR ≤30min

1.6 External Interface

The device has a 24V ± 4V power input
With serial port output function
External plug: Interface Y50EX-0607TX2

Plug Pin Definition

Plug Pin Number	Functional Definition
a	+24V
b	24V GND
c	TXD
d	Reserved
e	RXD
f	Reserved
g	GND
